Vandal Proof Fire Door Retainers

DRX – EN1155 Approved Fire Door Holder

Features

  • Rugged cast aluminium housing built to resist damage
  • Manual release button allows door to be closed without operating fire alarm
  • Third party certified to EN1155 as a hold-open device
  • Knockouts included for surface or rear cable entry

Description

Electromagnetic fire door retainers allow fire doors to be legally held open.

The DRX range is ideal for applications where maximum protection is needed against vandalism or accidental damage. Floor mounting also allows install when the fire door is not near a wall.

When connected into a fire alarm system, power to the electromagnet is removed when the alarm is active; closing the fire door via it’s standard mechanism.

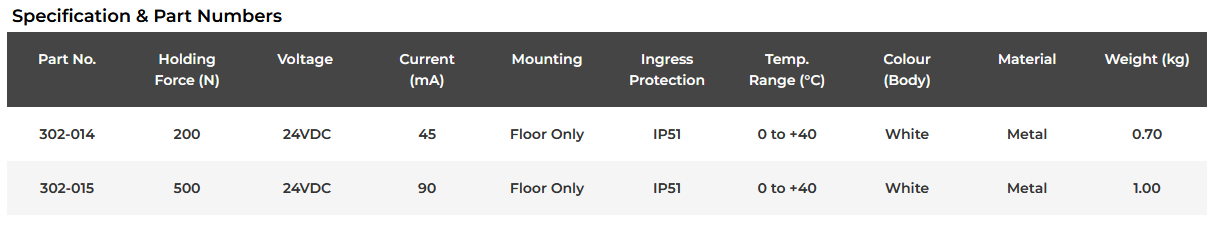

 Specification & Part Numbers

Part No.
Holding Force (N)
Voltage
Current (mA)
Mounting
Ingress Protection
Temp. Range (°C)
Colour (Body)
Material
Weight (kg)
302-014
200
24VDC
45
Floor Only
IP51
0 to +40
White
Metal
0.70
302-015
500
24VDC
90
Floor Only
IP51
0 to +40
White
Metal
1.00
Vandal Proof Door retainer

 Dimensions

Downloads

Datasheet
Installation Guide
Approvals

 Accessories

Chain Keeper Plate Low Profile Keeper Plate Flexible Keeper Plate

Part Numbers

302-005


Description

All door retainers are supplied as standard with the flexible keeper plate. However, for applications where the door does not reach the wall, the chain keeper comes with 1 metre of chain to facilitate a wider range of mounting options.

Part Numbers

302-006


Description

All door retainers are supplied as standard with the flexible keeper plate. However, for narrow corridors, the low profile keeper plate can allow the door to sit closer to the wall.

Part Numbers

302-007


Description

All door retainers are supplied as standard with the flexible keeper plate. If spares or replacements are required, they are available separately.

Transformer Rectifier Power Supply For 24VDC Door Retainers

Features

  • Powers a range of 24VDC door retainers and field devices from 230VAC supply
  • Automatic cut off when no power is supplied, fail-safe design results in fire door closing
  • Green LED indicating mains voltage present
  • Amber LED indicating fault condition

Description

Cranford offer a 2 Amp and 4 Amp power supply unit to assist with the installation of 24VDC door retainers.

The units contain an internal relay allowing fire doors to be closed upon actuation of an external contact or supply of 24VDC.

Additional 12VDC and 24VDC power supplies are available upon request.

 Specification & Part Numbers

Part No.
Max Output Load
Input Voltage
Output Voltage
Enclosure Dimensions (mm)
Weight (kg)
304-001
2 Amp
230VAC +10% – 15%
22-30VDC
200 x 230 x 80
2.9
304-002
4 Amp
230VAC +10% – 15%
22-30VDC
200 x 230 x 80
2.9
