Mains Isolators

Mains Voltage Isolators

Features

  • Provides safe and secure method of isolating fire alarm system products using mains voltage (door retainers etc)
  • Protected by 4A fast blow fuse
  • Compliant with installation requirements of BS5839 Part 1
  • Red or white colour options with power indication LED

Description

Mains voltage safety isolator switches provide a safe method of isolating mains voltage supply; facilitating the installation and maintenance of fire system products such as fire door retainers.

Supplied complete with an isolation key and a standard single gang back box which can be mounted on a standard 20mm conduit box.

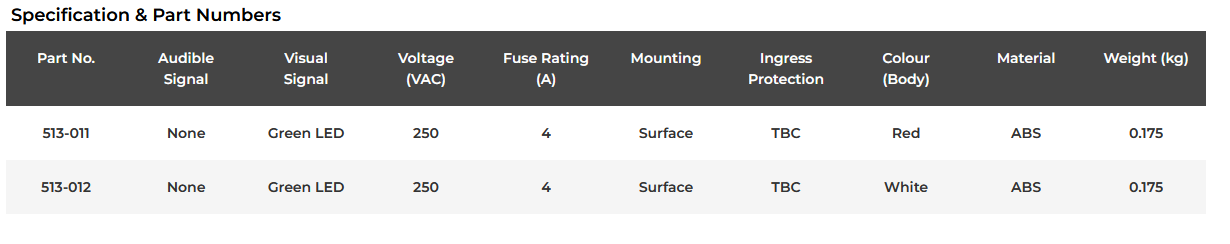

 Specification & Part Numbers

Part No.
Audible Signal
Visual Signal
Voltage (VAC)
Fuse Rating (A)
Mounting
Ingress Protection
Colour (Body)
Material
Weight (kg)
513-011
None
Green LED
250
4
Surface
TBC
Red
ABS
0.175
513-012
None
Green LED
250
4
Surface
TBC
White
ABS
0.175

Downloads

Datasheet
Installation Guide
Approvals
